The DMD 30-400 series covers a power range from 2.2 kW to 30 kW, with different models delivering varying free air capacity depending on pressure levels. Units are available in multiple configurations, including standalone compressors, tank-mounted systems and versions with integrated dryers. Air receivers range from 200 to 500 liters depending on the model, supporting a wide range of industrial air requirements.
Efficient belt-driven compressors built for everyday use
The DMD 30-400 series is designed to provide dependable compressed air across a wide power range from 2.2 to 30 kW. These oil-injected, belt-driven screw compressors combine a highly efficient airend with durable electric motors to ensure stable performance and long service life. Thanks to multiple configurations, including floor-mounted, tank-mounted and integrated dryer versions, the range adapts easily to different installation requirements while minimizing footprint and installation costs.
Built for real-world industrial environments, the DMD range focuses on reliability, operational efficiency and user comfort. The optimized cooling system, efficient filtration and robust components allow continuous operation even in demanding conditions. Advanced electronic control ensures smooth operation and monitoring of key parameters, helping operators maintain performance while reducing risk of downtime.
Maintenance has been simplified to reduce service time and operational cost. All key components are positioned under easily removable panels, allowing quick access for inspection and servicing. The external oil level sight glass enables fast monitoring without stopping the system, while the overall design ensures safe and efficient maintenance procedures. This user-focused approach helps minimize downtime and extends equipment lifetime.
Technical informations
- DMD 30-75
- DMD 100-150
- DMD 200-400
| Model | Capacity (m³/min) | Motor power | Noise level ** | |||
|---|---|---|---|---|---|---|
| 7 Bar | 8 Bar | 10 Bar | kW | HP | dB(A) | |
| DMD 30 C | / | 0,37 | 0,32 | 2,2 | 3 | 67 |
| DMD 30 CR | / | 0,37 | 0,32 | 2,2 | 3 | 67 |
| DMD 30 CRD | / | 0,37 | 0,32 | 2,2 | 3 | 67 |
| DMD 40 C | / | 0,42 | 0,38 | 3 | 4 | 67 |
| DMD 40 CR | / | 0,42 | 0,38 | 3 | 4 | 67 |
| DMD 40 CRD | / | 0,42 | 0,38 | 3 | 4 | 67 |
| DMD 55 C | 0,62 | 0,57 | 0,5 | 4 | 5,5 | 68 |
| DMD 55 CR | 0,62 | 0,57 | 0,5 | 4 | 5,5 | 68 |
| DMD 55 CRD | 0,62 | 0,57 | 0,5 | 4 | 5,5 | 68 |
| DMD 75 C | 0,8 | 0,78 | 0,69 | 5,5 | 7,5 | 68 |
| DMD 75 CR | 0,8 | 0,78 | 0,69 | 5,5 | 7,5 | 68 |
| DMD 75 CRD | 0,8 | 0,78 | 0,69 | 5,5 | 7,5 | 68 |
C* Compressor CR** Compressor + Air Receiver CRD*** Compressor + Air Receiver + Dryer
** Noise level measured according to ISO 2151.
Capacity measured according to ISO 1217 ED3, Annex C-2010 at 1 bar inlet pressure and 20°C intake temperature.
DMD 30–40–55–75 models are mounted on a 270 L horizontal air receiver.
| Model | Max.working pressure | Free Air Delivery @ reference conditions * | Motor power | Noise level ** | |||
|---|---|---|---|---|---|---|---|
| Bar | m³/h | l/s | cfm | kW | HP | db(A) | |
| DMD 100 | 8 | 68,4 | 19 | 40,3 | 7,5 | 10 | 65 |
| 10 | 59,8 | 16,6 | 35,2 | 7,5 | 10 | 65 | |
| 13 | 46,8 | 13 | 27,5 | 7,5 | 10 | 65 | |
| DMD 150 | 8 | 97,2 | 27 | 57,2 | 11 | 15 | 69 |
| 10 | 85 | 23,6 | 50 | 11 | 15 | 69 | |
| 13 | 69,1 | 19,2 | 40,7 | 11 | 15 | 69 | |
* Unit performance measured according to ISO 1217, Annex C, latest edition
** Noise level measured according to ISO 2151:2004 using ISO 9614/2
| Model | Max. working pressure | Free Air Delivery @ reference conditions * | Motor power | Noise level ** | |||
|---|---|---|---|---|---|---|---|
| Bar | m³/h | l/s | cfm | kW | hp | db(A) | |
| DMD 200 | 8 | 153 | 42,5 | 90 | 15 | 20 | 67 |
| 10 | 139 | 38,5 | 82 | 15 | 20 | 67 | |
| 13 | 112 | 31,2 | 66 | 15 | 20 | 67 | |
| DMD 250 | 8 | 188 | 52,1 | 110 | 18,5 | 25 | 69 |
| 10 | 162 | 45 | 95 | 18,5 | 25 | 69 | |
| 13 | 139 | 38,5 | 82 | 18,5 | 25 | 69 | |
| DMD 300 | 8 | 223 | 62 | 131 | 22 | 30 | 70 |
| 10 | 193 | 53,6 | 114 | 22 | 30 | 70 | |
| 13 | 167 | 46,4 | 98 | 22 | 30 | 70 | |
| DMD 400 | 8 | 260 | 72,2 | 153 | 30 | 40 | 71 |
| 10 | 234 | 65,1 | 138 | 30 | 40 | 71 | |
| 13 | 206 | 57,2 | 121 | 30 | 40 | 71 | |
* Unit performance measured according to ISO 1217, Annex C, latest edition
** Noise level measured according to ISO 2151:2004 using ISO 9614/2
DMD 30-400

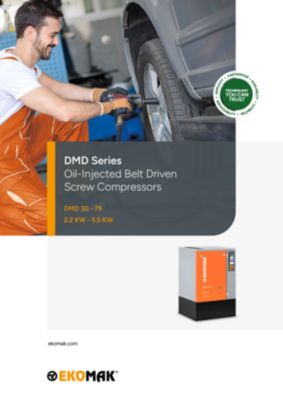

Product Brochure & Downloads
Search our brochures and leaflets for this product range. Download now to explore features, benefits, and find the perfect solution for your needs.
Market sectors
Typical uses
This range can be used in many different situations and serves a broad variety of purposes. It fits easily into multiple contexts, making it suitable for a wide selection of common applications listed below.
