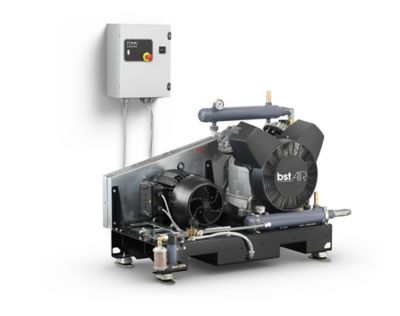

Count on the bstAIR 40 to supply dependable air or nitrogen for your high-pressure applications. Two models, two pressure variants, and a range of additional equipment and accessories ensure a flexible fit with your requirements.
The bstAIR 40 uses proven single-stage piston pump technology to reach a maximum working pressure of 40 bar. To protect the unit, the inlet pressure sensor stops the booster when the inlet pressure is too high or too low. Cooling is provided by the axial fan on the booster shaft. The crankcase is vented via the oil separator and the oil breather to reduce oil consumption.
|
Model |
Power |
Max. inlet pressure |
Max. discharge pressure |
Free Air Delivery |
||||
|
HP |
kW |
bar |
psi |
bar |
psi |
l/s |
CFM |
|
|
BSTAIR 10-40 |
10 |
7.5 |
10 |
145 |
40 |
580 |
34.7 |
73.5 |
|
BSTAIR 10-25 |
10 |
7.5 |
5 |
72 |
25 |
362 |
25.6 |
54.2 |
|
BSTAIR 15-40 |
15 |
11 |
10 |
145 |
40 |
580 |
48.5 |
102.8 |
|
BSTAIR 15-25 |
15 |
11 |
5 |
72 |
25 |
362 |
37.0 |
78.5 |
|
BSTAIR 20-40 |
20 |
15 |
10 |
145 |
40 |
580 |
63.8 |
135.3 |
|
BSTAIR 20-25 |
20 |
15 |
5 |
72 |
25 |
362 |
48.8 |
103.5 |
|
BSTAIR 25-40 |
25 |
18.5 |
10 |
145 |
40 |
580 |
77.5 |
164.2 |
|
BSTAIR 25-25 |
25 |
18.5 |
5 |
72 |
25 |
362 |
65.1 |
137.8 |
|
BSTAIR 30-40 |
30 |
22 |
10 |
145 |
40 |
580 |
94.2 |
199.6 |
|
BSTAIR 30-25 |
30 |
22 |
5 |
72 |
25 |
362 |
77.5 |
164.2 |
|
BSTAIR 40-40 |
40 |
30 |
10 |
145 |
40 |
580 |
124.8 |
264.6 |
|
BSTAIR 40-25 |
40 |
30 |
5 |
72 |
25 |
362 |
102.8 |
217.8 |
